How can I monitor multiple input sources through a specific output?
All OS

The Lynx Outputs Mixer allows routing of up to 4 input sources to any output. Please note: With Firmware Rev 25 for the AES16, or Firmware Rev 7 for the AES16e, and current Windows or OS X drivers, then 10 sources per output are available.

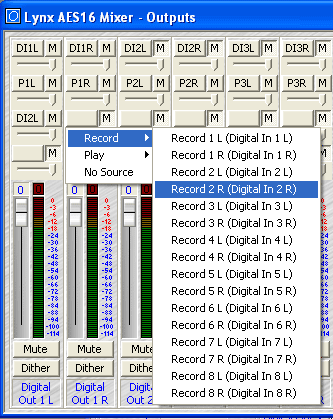

As pictured, there are four Output Monitor Source buttons above the faders on each output channel of the Lynx Outputs Mixer. A mouse click on one of these buttons launches a menu of record and playback sources. Selecting record sources causes input signals to be routed to the output.

By assigning record sources to each of the four Output Monitor Source select positions in an output’s channel strip, four input sources can be directly monitored through a single output.
