How do I monitor audio coming in input 1 through output 1?
All OS

The Outputs page of the Lynx Mixer provides access to the sub-mixer connected to each physical output. Controls on this page allow manual setup of monitoring.

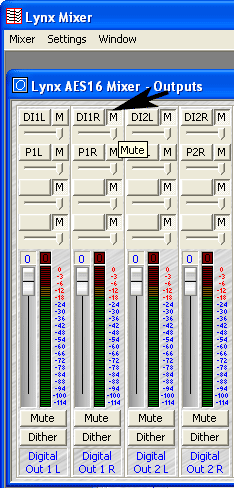

As a convenience, the default state of the Lynx Mixer Outputs page establishes monitor sources that are assigned to logical outputs, but these monitor sources are muted to avoid unintended use. To monitor digital input 1 through digital output 1, simply un-mute the DI1L (Digital In 1 Left) and DI1R (Digital In 1 Right) monitor sources in the Lynx Outputs Mixer at the top of the channels strips for Digital Out 1 L and Digital Out 1 R.
