How do I uninstall the AES16 card?
Version 1/NT4 driver Windows NT/2000/XP
Version 2/WDM driver Windows 2000/XP/Vista
Macintosh OS 9
Macintosh OS X
Uninstalling the Windows Version 1 Driver Package

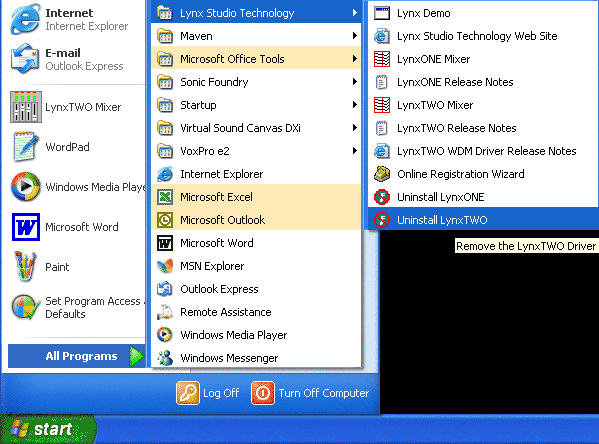

1. From the start menu, click on “Lynx Studio Technology”, and then click “Uninstall LynxTWO”.

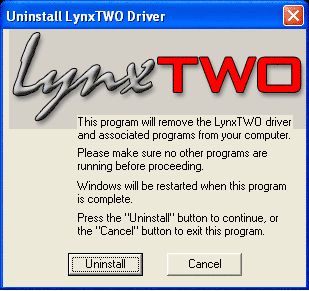

2. Choose “Uninstall” from the next screen that appears.

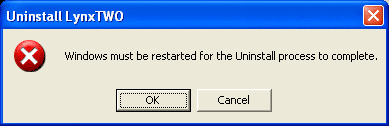

3. Restart the computer when prompted.

Uninstalling the Version 2/WDM driver Windows 2000/XP/Vista

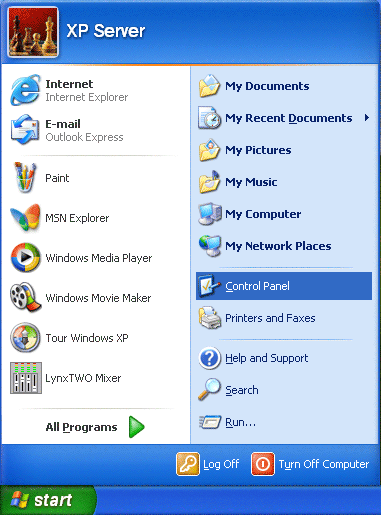

1. From the start menu, click on “Control Panel” (NOTE: In Windows 2000 click on “Settings”> “Control Panel”).

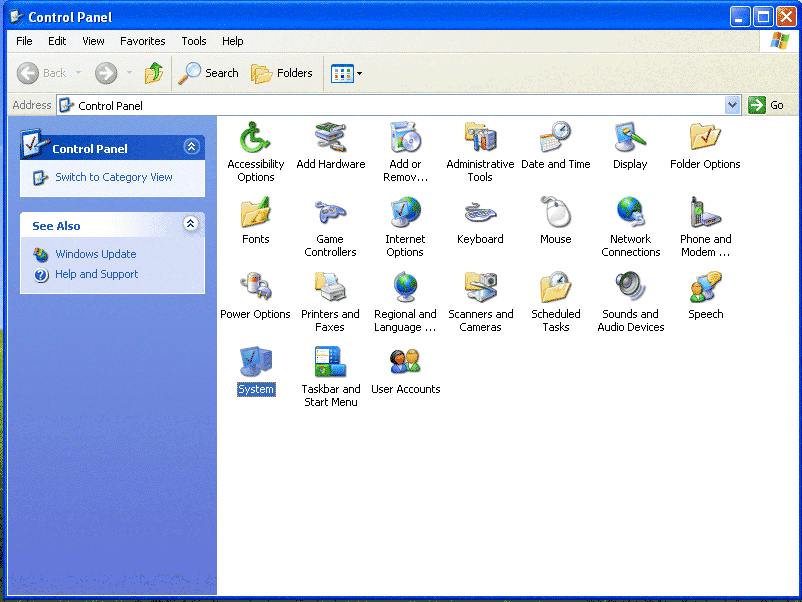

2. Click “System” to launch System Properties.

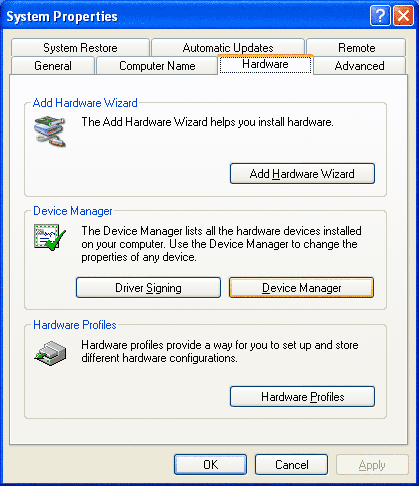

3. Choose “Device Manager” from the Hardware tab

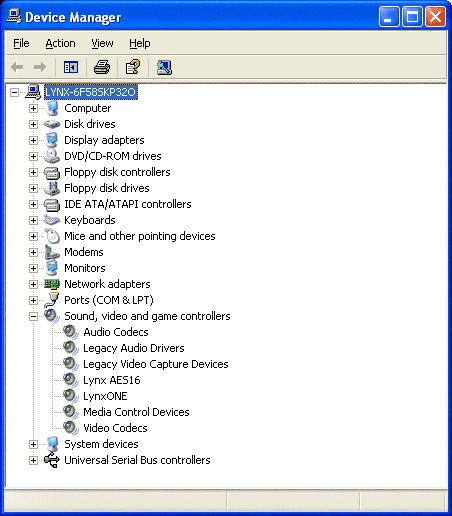

4. Expand the Sound, video and game controllers section of device manager by clicking its “+” sign

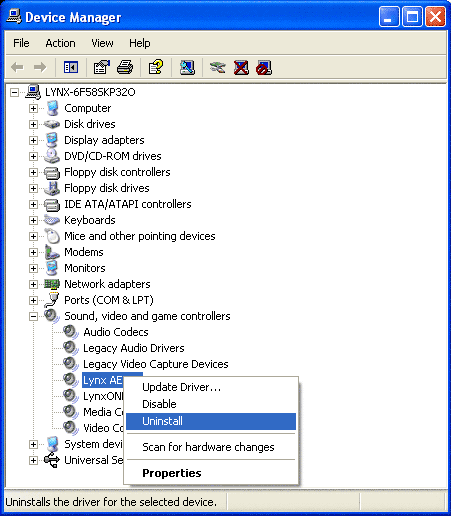

5. Right click on LynxAES16 and choose “Uninstall”

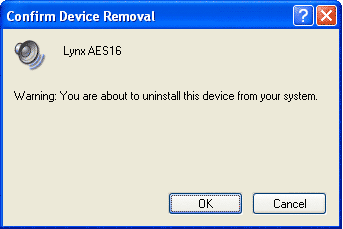

6. Confirm device removal by clicking “OK”. (NOTE: In Windows 2000 click “Yes” when prompted to restart the computer).

7. Reboot the computer.

Uninstalling the Macintosh OS 9 ASIO Driver

To uninstall the driver, simply remove the LynxTWO file from the ASIO drivers folder of your audio application.
Updating the Macintosh OS 9 ASIO Driver

To update the LynxTWO/ L22 driver with a newer version, replace the existing LynxTWO file from the ASIO drivers folder of your audio application with the newer LynxTWO file.
Uninstalling the Macintosh OS X Core Audio Driver

To uninstall the driver, you will have to use a third-party uninstaller like DesInstaller Version 2, which you can download from: http://krugazor.free.fr/software/desinstaller/DesInstaller.php. Follow the uninstaller’s instructions to remove the Lynx_OSX.pkg.
Updating the Macintosh OS X Core Audio Driver

To update the LynxTWO driver with a newer version, simply follow the instructions for uninstalling the driver and then install the newer version per the installation instructions. You may need to reconfigure the Lynx mixer and your recording application(s) after updating the driver.
